Self-sufficient sensor network for monitoring high-voltage lines
![](/en/focus-topics/security/protection-of-critical-infrastructures/astrose/jcr:content/contentPar/sectioncomponent/sectionParsys/textwithinlinedimage/imageComponent1/image.img.jpg/1699957275425/Astrose-Fraunhofer-IZM-Volker-Mai.jpg)
![](/en/focus-topics/security/protection-of-critical-infrastructures/astrose/jcr:content/contentPar/sectioncomponent/sectionParsys/textwithinlinedimage/imageComponent2/image.img.jpg/1699957275425/Astrose-Sensor-Systems-Fraunhofer-IZM.jpg)

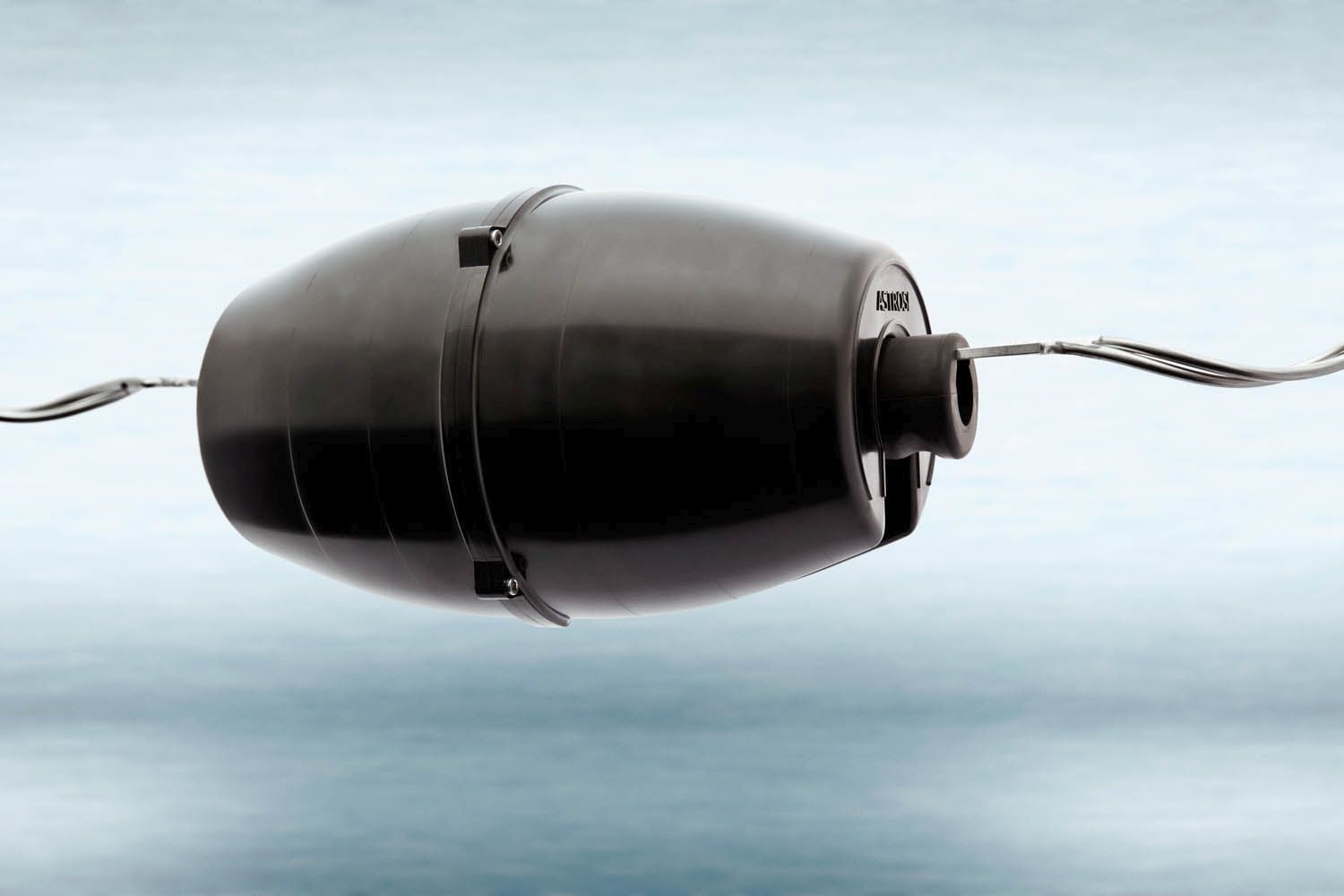

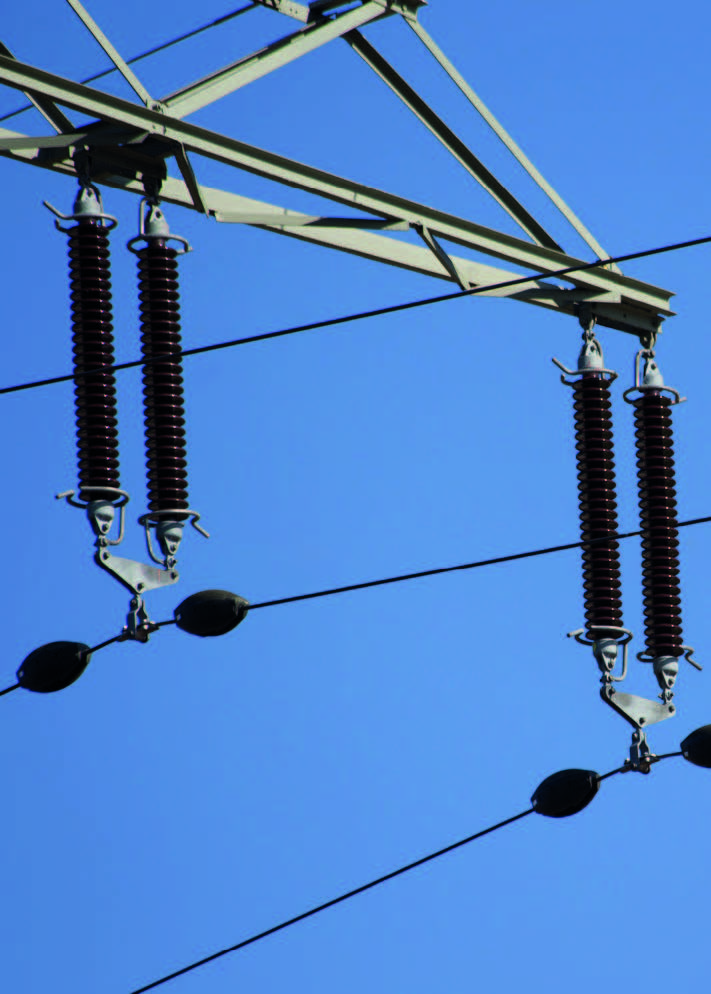

ASTROSE® is an IoT system of wireless sensor nodes for monitoring high-voltage and extra-high-voltage overhead lines. These sensor nodes record various measured values in the spans. The following parameters, among others, are measured to record the relevant parameters of the conductor cable:
- Temperature of the conductor
- Current through the conductor
- Inclination of the cable
- Swing-out angle of the cable
By continuously recording this data, grid operators can optimize transport capacity, identify critical conditions more quickly and record long-term operating data. This creates significant economic benefits in operation and system management.
ASTROSE® is an energy self-sufficient, ultra low power system with the following areas of application, among others:
- Increase in transport capacity - Ampacity
- Ice load detection
- Hazard detection - rope breakage, ground fault
- Camera-based equipment and aisle monitoring
Various secure wireless communication technologies are available for transmitting the measurement data, enabling ranges of 1 km and more. A base station receives the data packets and forwards them to a server. Various software modules enable application-specific, AI-based evaluation and a graphical interactive display of the data. The measurement data and aggregated information can be made available to the control system via telecontrol protocols.
ASTROSE website: https://www.astrose.de/en
